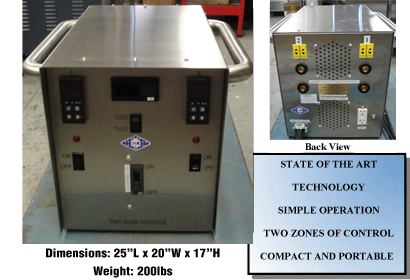

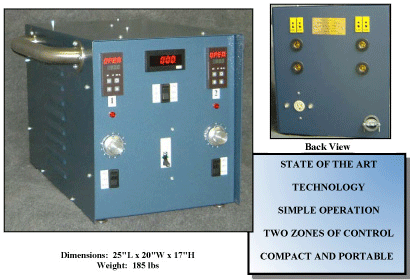

Two Zone Console:
TZC2003-2 |
|
|
|
|
Standard
Features are:
- 14.5 KVA/11.6 KW (1 phase) isolated copper
wound power transformer: Primary Voltage: 220/460, 60 Hz Secondary
Voltage 0/65/85 with thermal trip to prevent overload.
- Two semi-automatic
digital temperature controllers (0-1200°C
or 0-2200°F, Type “K”) with ramp rate in degrees/hr
to set point and capable of performing up to two different processes
at a time (1/8 DIN) or two fully automatic
individual digital controllers (0-1200°C or 0-2200°F,
Type “K”)
(not shown on picture) (Part#: P159°F/°C)
controls temperature rate of rise, length of hold time and rate
of cool. User friendly
and simple operation
- Digital amp meter (0-200 amps) with two-channel
switch and two current transformers.
- Painted steel cabinet with
feet and two lifting bars.
- Two x 50 CFM cooling fans.
- One 110 volt auxiliary plug.
- 60 amp - 1 phase circuit breaker
with 120 volt uv release.
- Two 200 amp contactors (100% duty
cycle).
- Two energy regulators with aluminum knobs and scales.
- Two
110 volt neons and 2 x two way on off on switches.
- Instrument
wiring tinned copper to prevent corrosion and down time.
Note 1: One two-zone console is capable
of heating an area up to 2.5 sq. ft. approximately using
a total of 4 x 60 volt ceramic pad heaters.
Note 2: One two-zone console is capable
of heating an area up to 3.33 sq. ft. approximately using
a total of 4 x 80 volt ceramic pad heaters.
|
|
