Standard
Features are:
- 14.5 KVA/11.6 KW (1 phase) isolated copper wound power transformer:
Primary Voltage: 220/460, 60 Hz
- Secondary Voltage 0/65/85 with
thermal trip to prevent overload.
- Two semi-automatic digital
temperature controllers (0-1200°C
or 0-2200°F, Type “K”) with ramp rate in degrees/hr
to set point and capable of performing up to two different
processes at a time (1/8 DIN) or two fully automatic individual
digital controllers (0-1200°C or 0-2200°F, Type “K”)

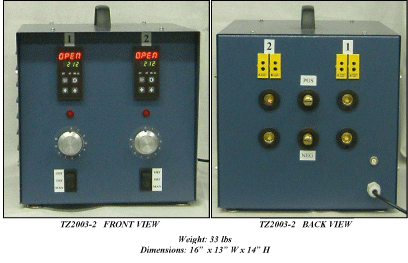

(not shown on picture) (Part#: P159°F/°C) controls
temperature rate of rise, length of hold time and rate of cool.
User friendly and simple operation
- Digital amp meter (0-200
amps) with two-channel switch and two current transformers.
- Stainless
steel cabinet with feet and two lifting bars.
- Two x 50 CFM cooling
fans
- One 110 volt auxiliary plug.
- 60 amp - 1 phase circuit breaker
with 120 volt uv release. NOTE: 30 amp breaker for 220 Volts
-
Two
200 amp ALBRIGHT contactors (100% duty cycle).
-
Two 110 volt
neons and 2 x two way on off on switches.
Instrument wiring tinned copper to prevent corrosion and down
time.
Note 1: One two-zone console is capable of heating an area
up to 2.5 sq. ft. approximately using a total of 4 x 60 volt
ceramic pad heaters.
Note 2: One two-zone console is capable
of heating an area up to 3.33 sq. ft. approximately using a
total of 4 x 80 volt ceramic pad heaters.
|
