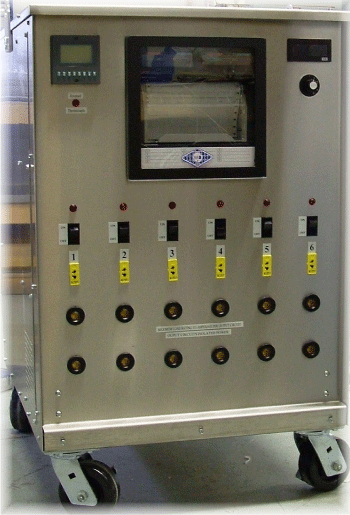

6
Way Automatic Heat Treatment Console - PCR2007-6 |
|
|
|
|
| Standard Features are: 75 KVA (3 phase) isolated copper wound power transformer: Primary Voltage: 380/415/440/480/575, 50/60 Hz Secondary Voltage 65/85 with thermal trips per phase to prevent overload. • Internal 12 Channel Chino Digital Recorder (Simultaneous Display/12 Channels/°C or °F) 180mm/7" Chart (model AH3725-N00) • Automatic programmer FGHP256 (°C or °F) controls temperature rate of rise, length of hold time and rate of cool. Also has reversed thermocouple feature. User friendly and simple operation • Digital amp meter (0-200 amps) with six-channel selector switch and six current transformers which is the utmost importance for checking the current to the ceramic pad heater to make sure they are all operating. • Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs. **Wheels or SS mounting brackets available upon request. • One 420 CFM cooling fan which keeps all instrumentation and transformer cool. • One 110 volt auxiliary plug. • 100 amp - 3 phase circuit breaker with 120 volt uv release. • Six 200 amp ALBRIGHT contactors. • Six 110 volt neons and six two way on off on switches. • Instrument wiring tinned copper to prevent corrosion and down time |
|
