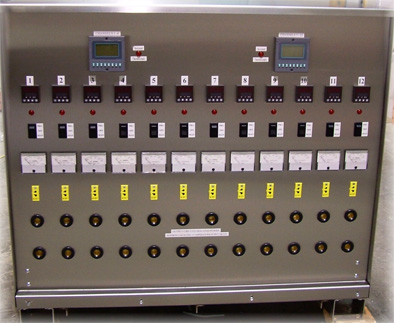

Stainless steel 12 way fully automatic heat treatment console: PCR2007-12


Qty:
SPEC_SHEET

Standard Features are:
  • 130 KVA (3 phase) isolated copper wound power transformer: Primary Voltage: 480/575/600, 60 Hz
  • Secondary Voltage 85 with thermal trips per phase to prevent overload.
  • 2 x Automatic programmer FGHP256 (°C or °F) controls temperature rate of rise, length of hold time and rate of cool. Also has reversed thermocouple feature. User friendly and simple operation
  • 12 digital temperature controllers (°C or °F) with ramp rate in degrees/hr to set point and capable of performing up to six different processes at a time (1/16 DIN)
  • 12 x analogue amp meters or 2 x digital amp meter (0-200 amps) with six-channel selector switch and six current transformers which is the utmost importance for checking the current to the ceramic pad heater to make sure they are all operating.
  • Stainless steel cabinet with swivel wheels (900 lb capacity each with brake) and two lifting lugs. **Wheels or SS mounting brackets available upon request.
  • 2 x 420 CFM cooling fan which keeps all instrumentation and transformer cool.
  • One 110 volt auxiliary plug.
  • 200 amp - 3 phase circuit breaker with 120 volt uv release.
  • 12 x 200 amp ALBRIGHT contactors.
  • 12 x 110 volt neons
